Installation requirements

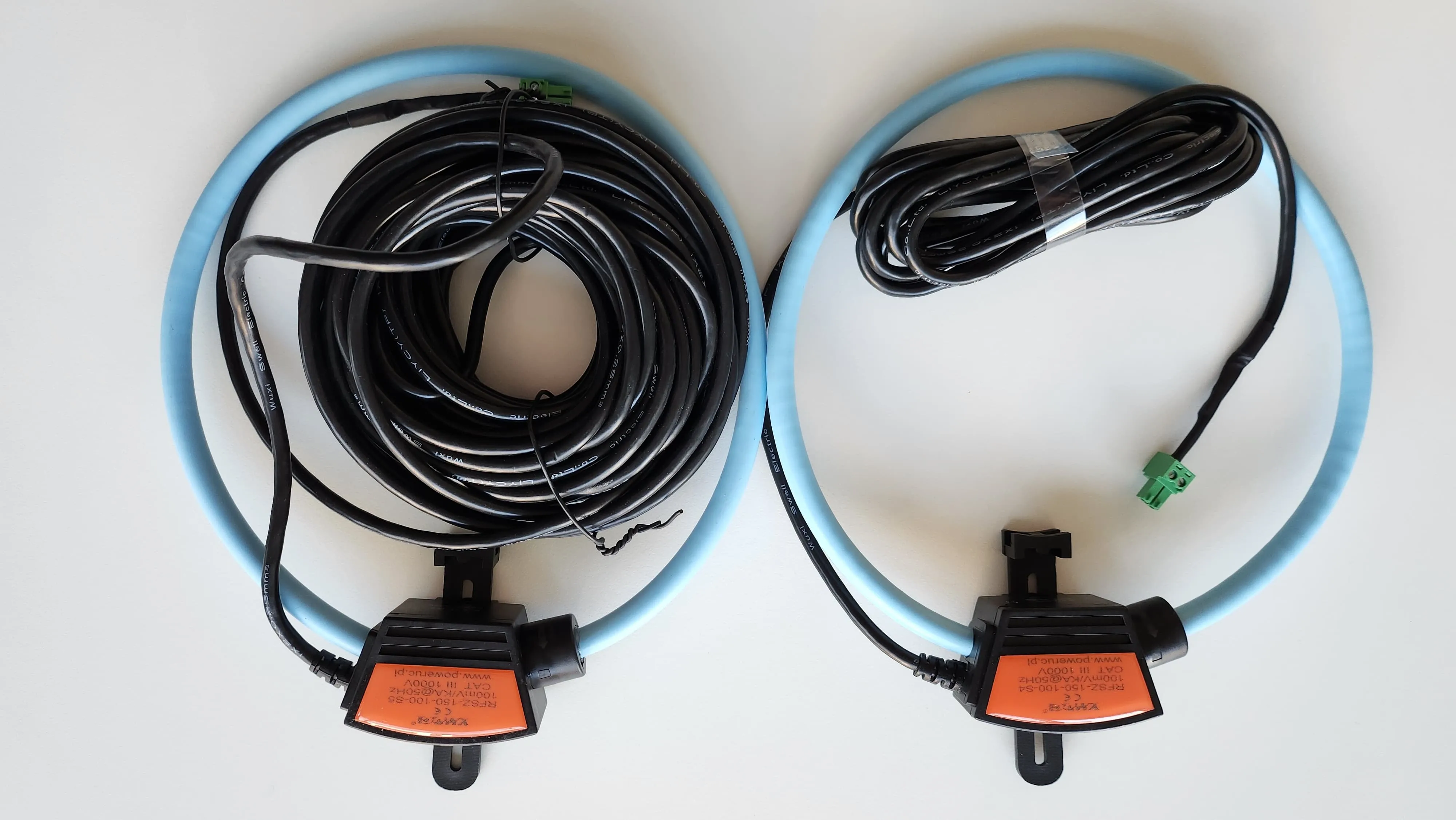

warning as the installation takes place in the switch cabinet or in the fuse box, we recommend that you contact an electrician list of material the product clemap load management static/gateway does not have current transformers or rogowski coils technical data power supply radio protocol dimensions (wxhxd) 230v+/ 10% 50/60hz ac wifi 802 11b/g/n 105 x 86 x 59 mm conforms to eu standards wifi frequency 2 4 – 2 5 ghz lan rj45 connector power consumption <3w re directive 2014/53/eu lvd 2014/35/eu emc 2014/30/eu rohs2 2011/65/eu operating range (depending on local construction) up to 50 m outdoors up to 30 m indoors mechanical interface din rail description clemap load management is used for dynamic power limitation of two or more electric charging stations in a garage or car park the power consumption of the entire building is measured and the remaining available power for the charging stations is calculated and communicated in real time the load management status can be monitored and controlled historically and in real time via the online portal clemap floem clemap load management can operate in the local network and basically works perfectly even without an internet connection however, a temporary internet connection is required during the installation phase it is also recommended to install a permanent internet connection so that the status of the charging stations can be monitored remotely via clemap floem after commissioning clemap load management is installed in a fuse box and must be connected to the power supply lines between the meter and the building usually there are three input lines in a building the phase conductors (l1=brown, l2=black and l3=grey) and as output the neutral conductor (also called n=blue) the three current sensors must be connected to the three input lines installation requirements (also apply to the clemap energy monitor) before you start the installation, check that the following points are fulfilled you have a smartphone or laptop to activate the clemap product there is enough space in the fuse box to install the clemap product a yes → go to step 3 b no → check whether you can install clemap next to the fuse box clemap can also be installed in other fuse boxes continue to point 3 is there an ethernet cable connection or possibly a wifi network at the installation location of the clemap product? a yes → start the installation b no → pull a lan cable up to the clemap sensor or install a wifi repeater and continue with the installation safety notice for all work with electricity, safety is paramount the lines of the area where work is being done must be switched off "all poles" before the work the best way to do this is to switch off the corresponding fuse but be careful all pole means that all conductors, i e the phase as well as the neutral conductor, are de energised to ensure this, the residual current circuit breaker (fi) should also be switched off in addition, the cables must be checked to ensure that they are current free before touching them power cable colours and their meaning the function of each conductor can be recognised by the respective colour of the power cable in a proper electrical installation but be careful old buildings often have the wrong colouring of the conductors because the standards have changed several times over the years basically, there are three types of electrical cables first, there is the active conductor, the outer conductor, also called the phase conductor (l) or simply phase then there is the neutral conductor (n) and finally there is the protective conductor (pe), also simply called earth (not used when installing the clemap product) the following are the colours of the power cables phase l1, l2 and l3 brown, black, grey neutral n blue earth pe green yellow however, especially with older installations, do not assume that the colour scheme of the electrical installation is correct
