DEFA Power S

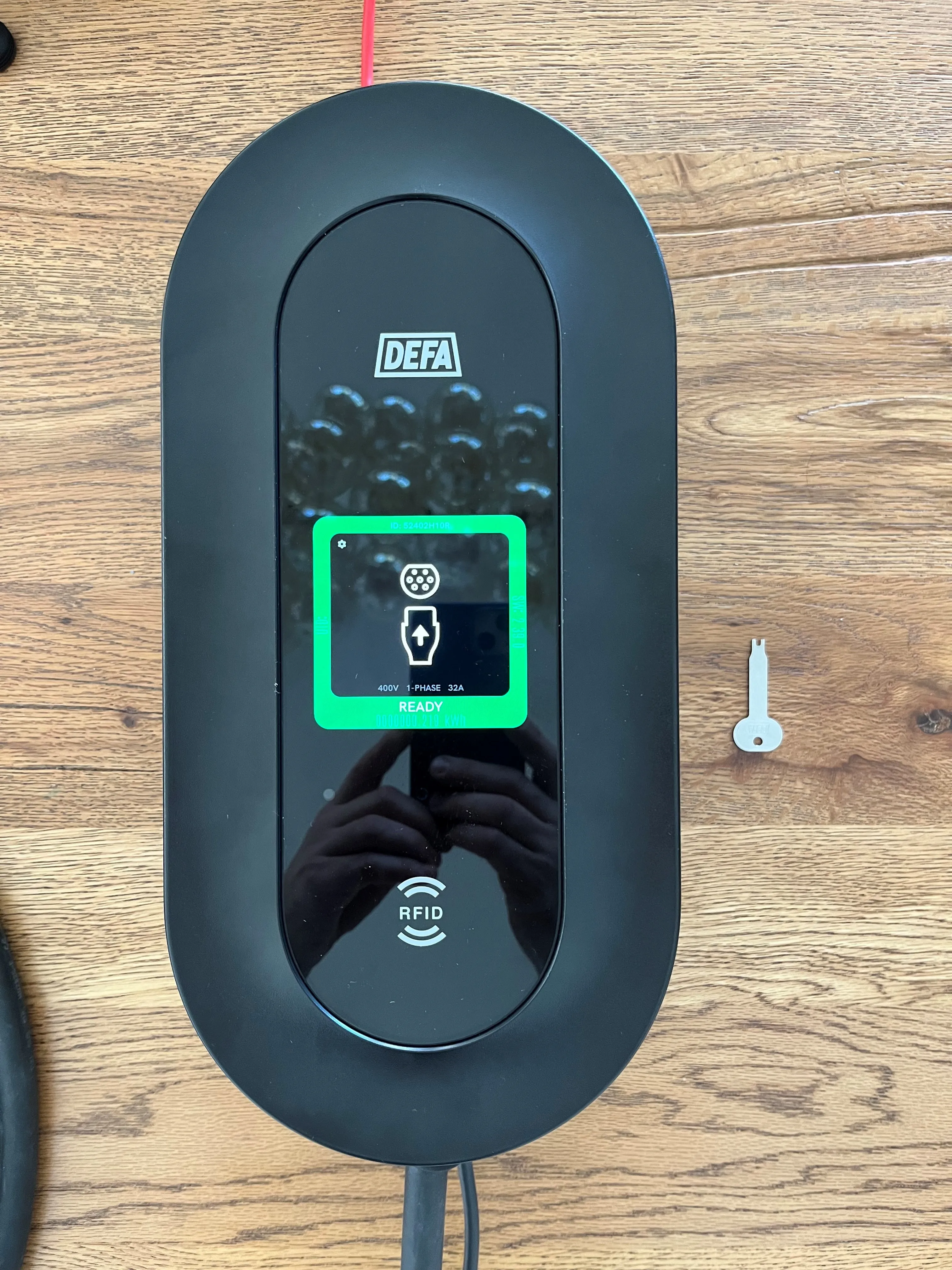

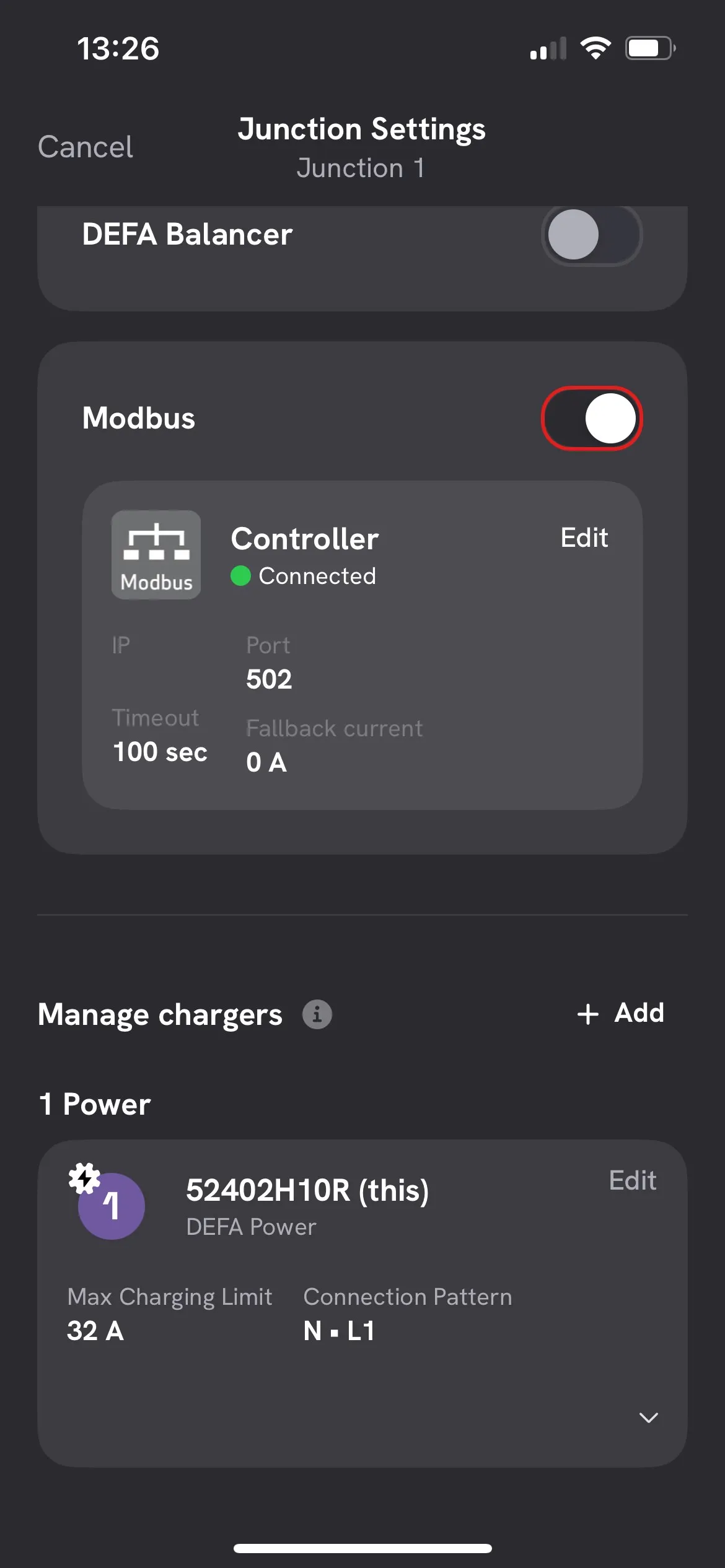

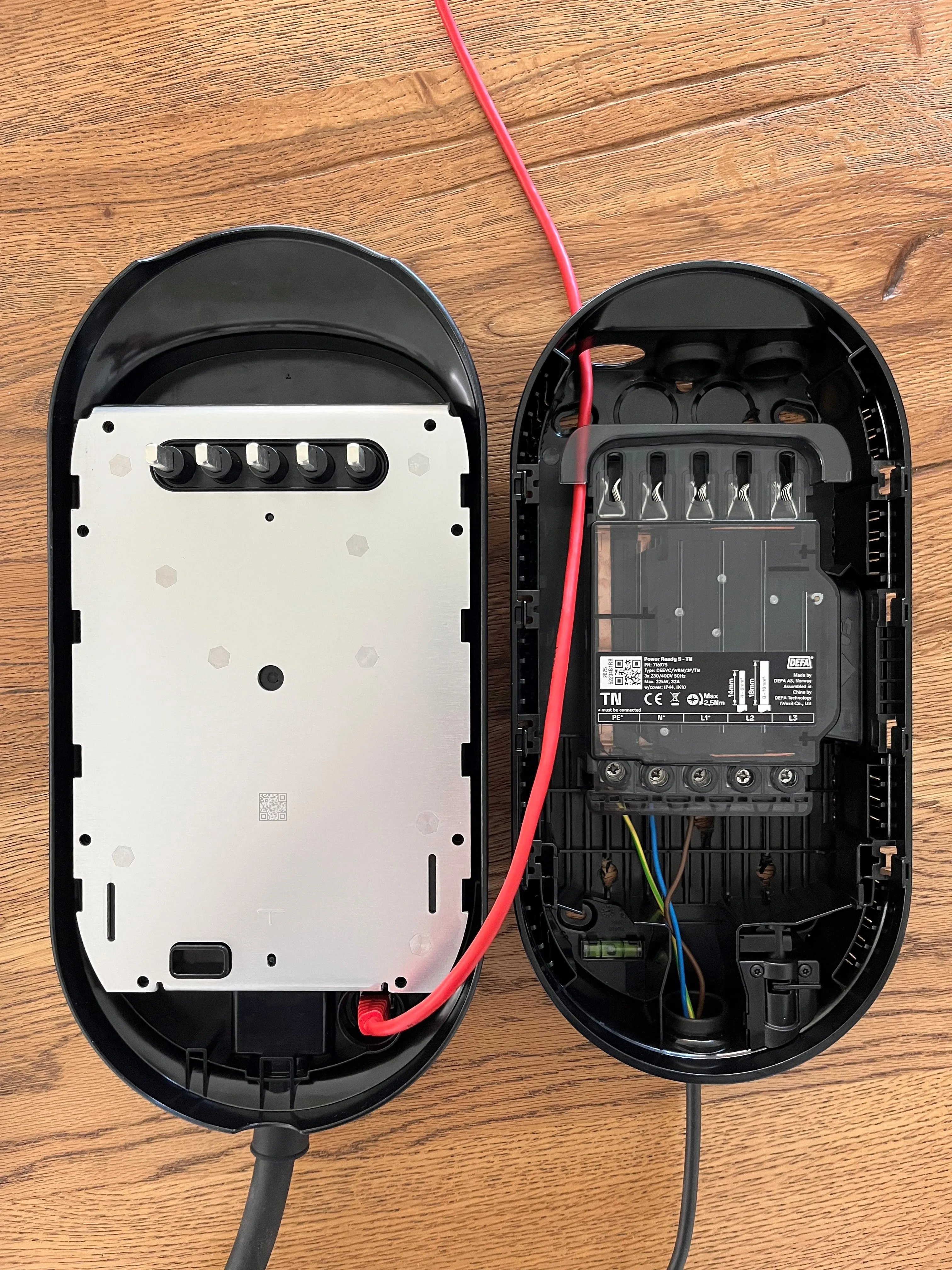

configuration of the defa power charging station with modbus tcp download the defa power setup app on your mobile phone remove the power base plug from the charger and connect the ethernet cable to the charging station c reinsert the power base plug into the charger, secure it physically using the provided key, then connect the power cable to switch the charger on launch the app , register or log in allow the app to search for bluetooth devices , then connect to the defa power charging station before enabling modbus tcp, check under “about the charger” that the firmware version is higher than 4 1 1 modbus tcp is disabled by default and must be enabled manually in the app, navigate to charger system > setup > junction settings > modbus → switch to on connect the laptop to the local network and run an ip scanner tool (e g , advanced ip scanner ) to identify the ip address of the charging station further information can be found directly on the defa website https //www defa com/support/defa power/
