Juice Charger Me

1) Scan the EVSE's IP Address in your local network.

2) Enter WebUI via EVSE IP Address.

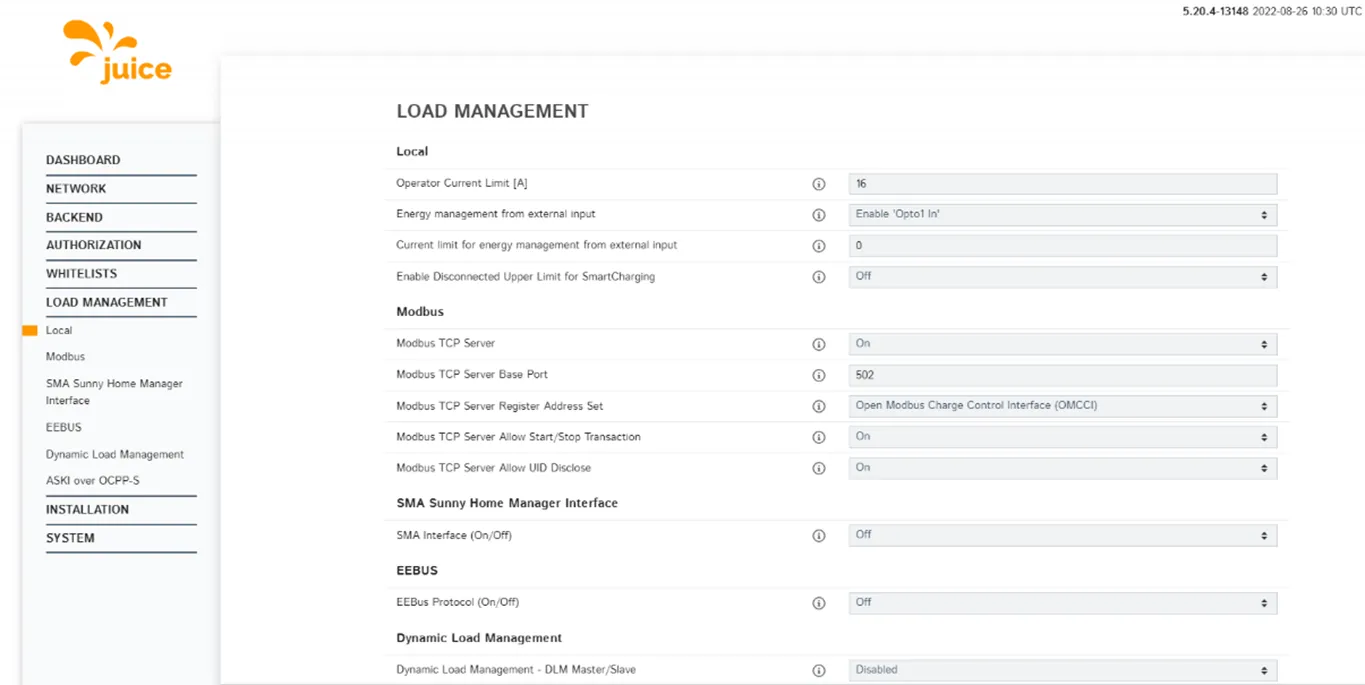

3) The setting "Dynamic Load Management - DLM Master/Slave" must be set to "DLM Master (With internal DLM-Slave)".

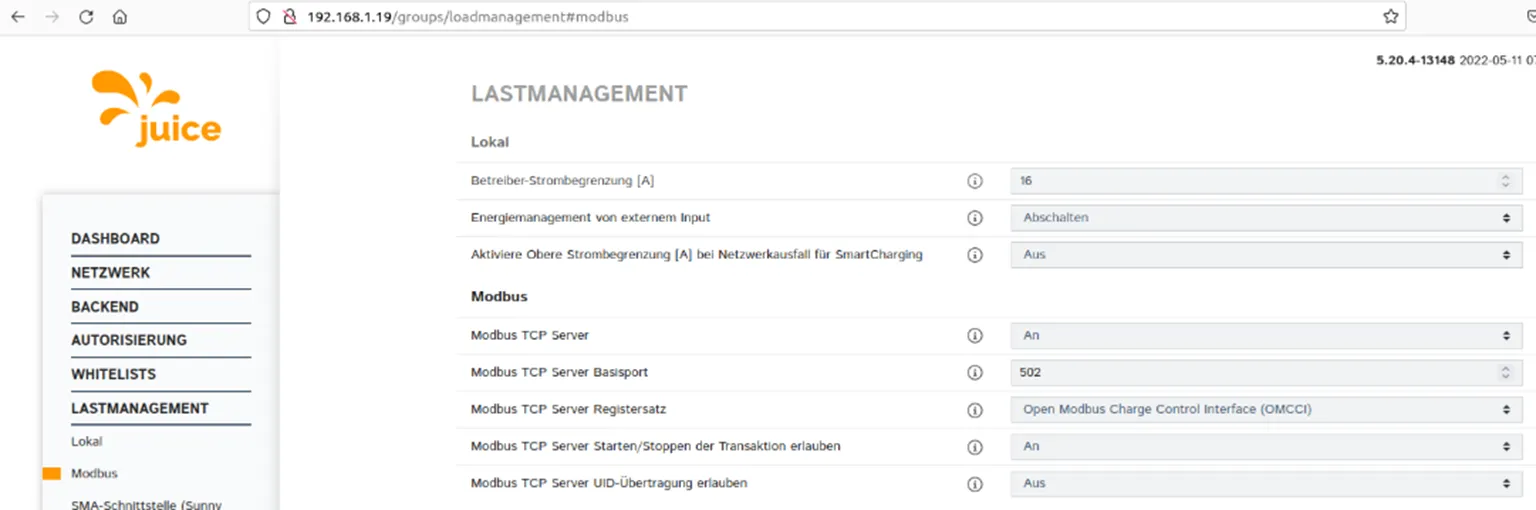

4) Enable Modbus.

5) Modbus TCP Server: ON

6) Modbus TCP Server Register …: Open Modbus (OMCCI)

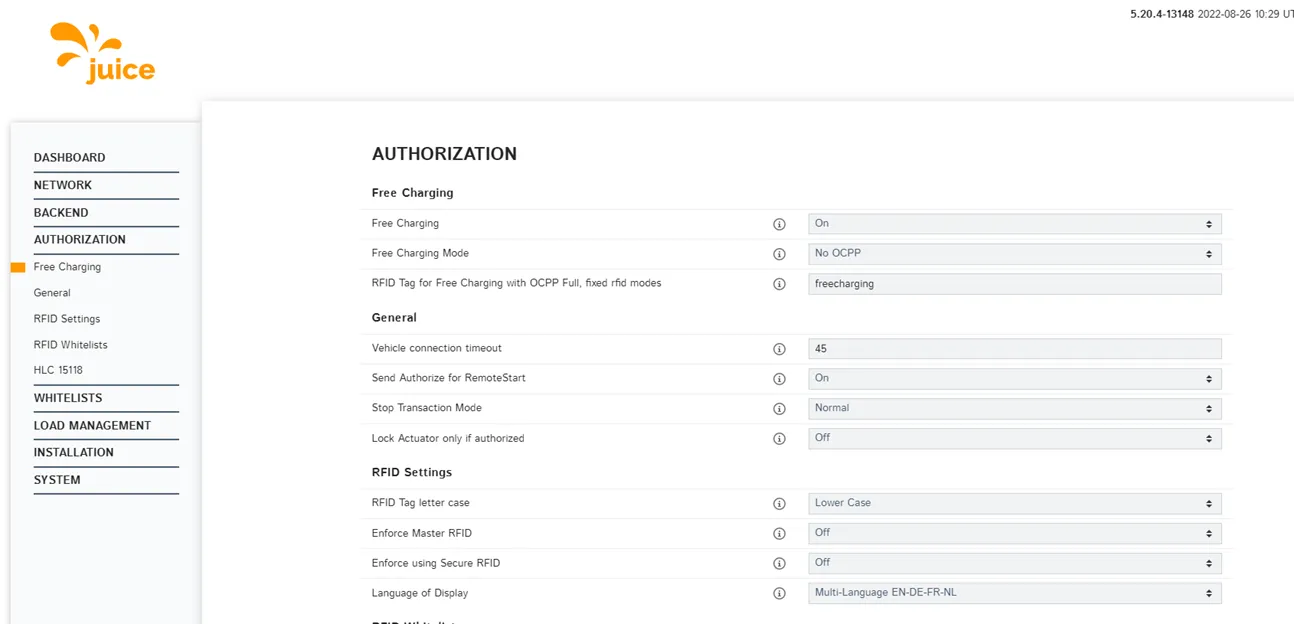

Optional) Select freecharging ON

Happy charging!
