Compleo eBox

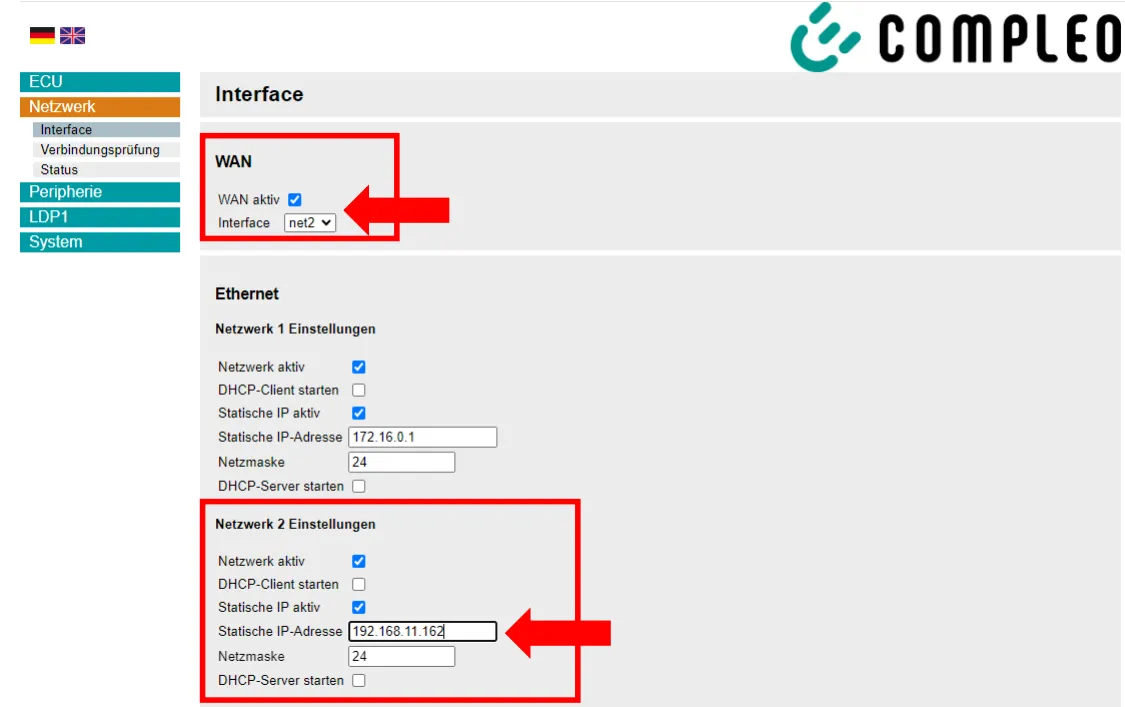

1\) open the box and connect the lan cable connect one end of the lan cable to the port 8 on the eclick that is labeled "lan1" ( net1 ) connect the other end of the lan cable to your pc 2\) connect lan cable to your pc and go to network connection and then select ethernet properties 3\) set your ipv4 to 172 16 0 99 or in my case to 192 168 1 99 or 192 168 11 146 this way we will connect to the webinterface locally 4\) connect to the webinterface "webconfig" http //172 16 0 1/ and login with admin and password benutzername admin kennwort \<puk> , usually at the back of the manual 5\) in netzwerk > interface set wan aktiv choose net2 (port 2a) then set your static ip address, matching your networks ip structure change to match your local ip settings and set a static one that is unique in your network, in my case to 192 168 11 162 net2 = netzwerk 2 (port 2a on the eclick) ist the port for loadmanagement an internet (backend) net1 = netzwerk 1 (port 8 on the eclick) is the port for locally configuration of the ebox 6\) in ldp1 > lastmanagement choose type modbus tcp and the interface to net2 and port on 502 7\) open the box and connect the lan cable to clemap connect one end of the lan cable to the port 2a on the eclick that is labeled "lan2" ( net2 ) connect the other end of the lan cable to your clemap edge device to the same network remeber to always save changes in the webinterface "webconfig" always connect the white ribbon cable of the ebox to port 1 of the eclick 8\) connect your charging station to your local network and your clemap load management to the same network set the compleo charging station ip address and 502 port in the edge device‘s webui and you are all set please select the version of your ebox hardware 0 1 if it is lower than 2 0 34 2 0 34 if it is between 2 0 34 and 2 1 0 2 1 0 if it is 2 1 0 or higher note that for the last management to work you need ebox fw2 0 3 or higher and for the billing to work you need fw2 0 1 or higher you have to update them manually on the ebox interface you can find them here https //vaylens atlassian net/wiki/external/ywfhogizogy3mdkxndm1n2eyzgi3ntuxmgu5nzjin2y https //vaylens atlassian net/wiki/external/ywfhogizogy3mdkxndm1n2eyzgi3ntuxmgu5nzjin2y update path happy charging!
