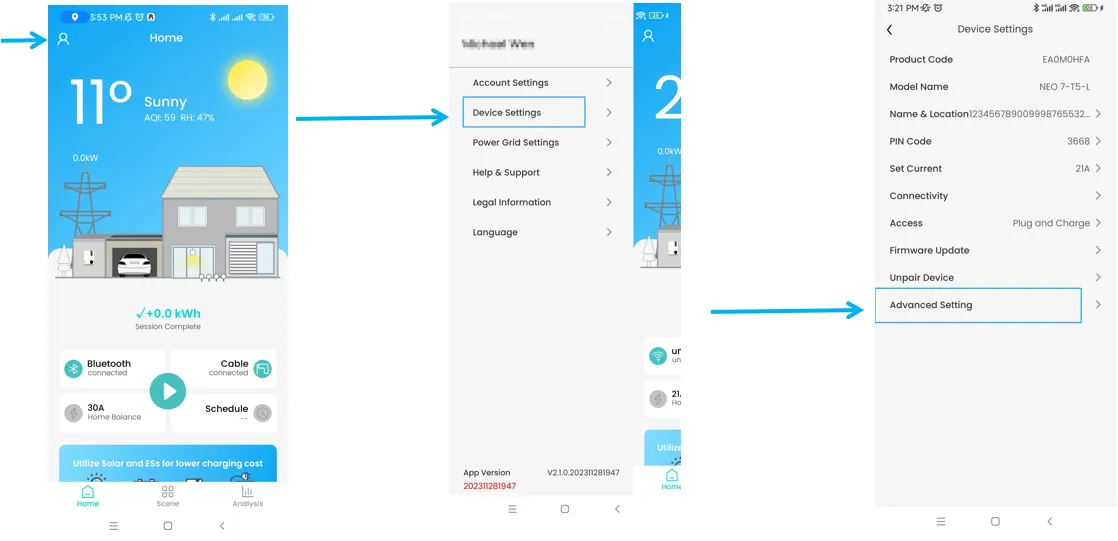

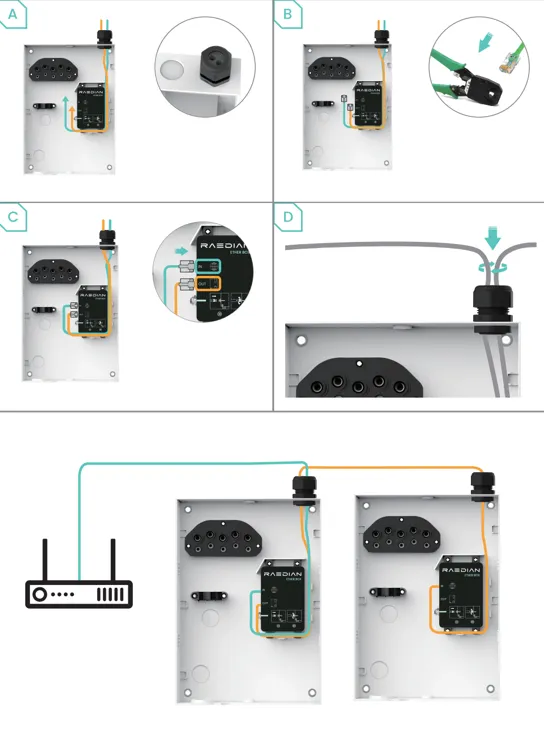

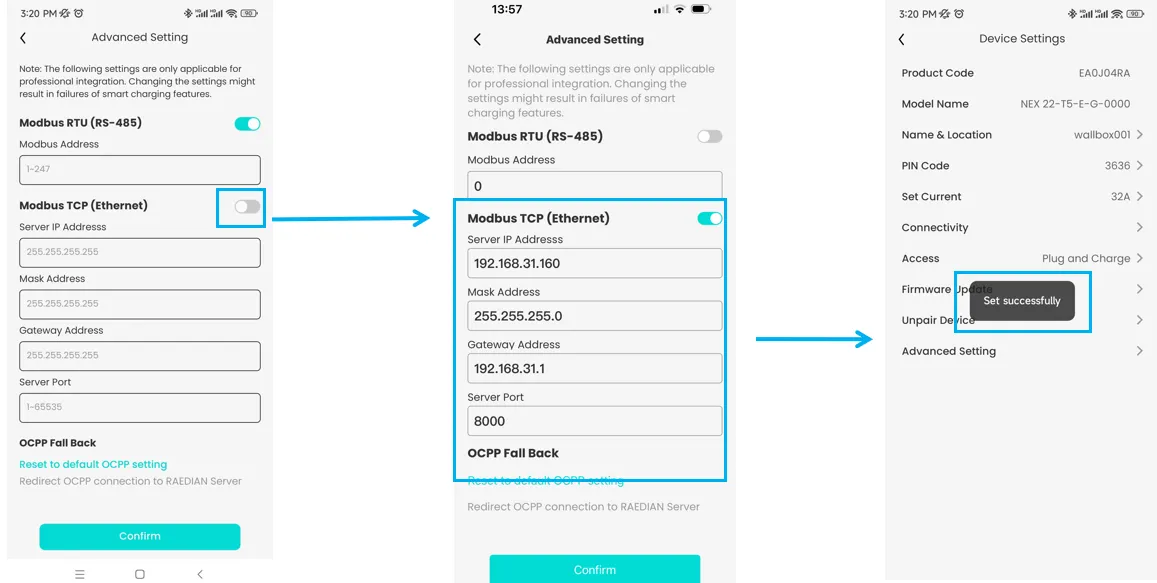

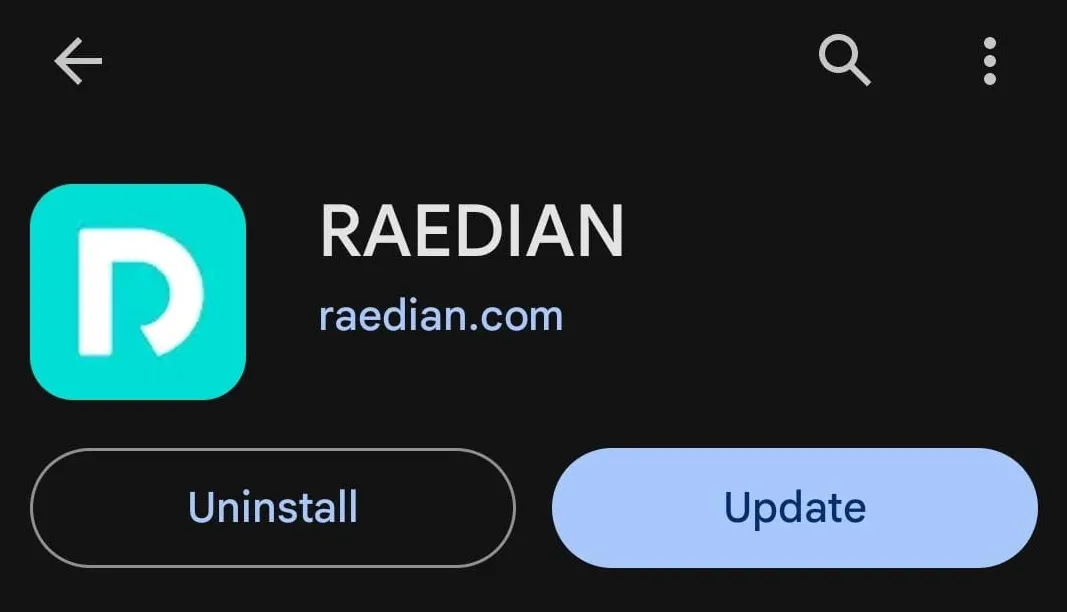

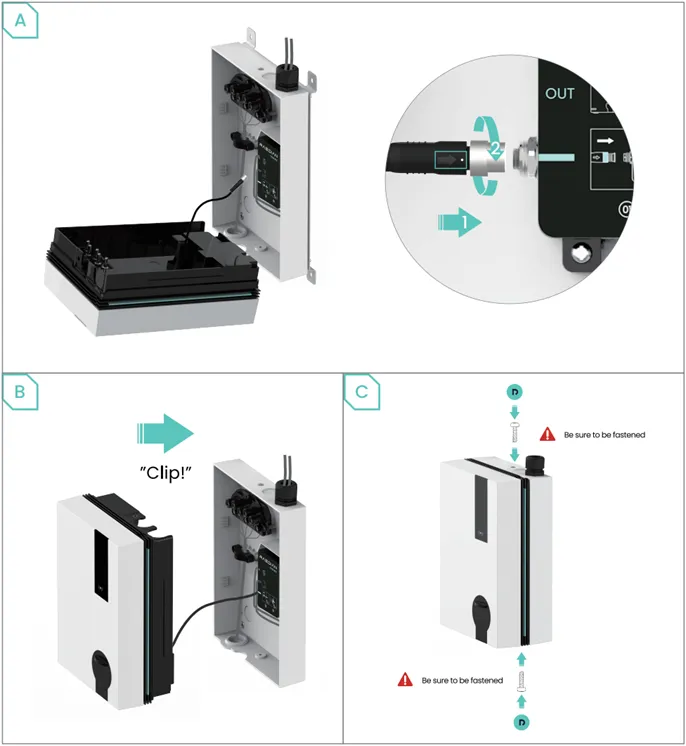

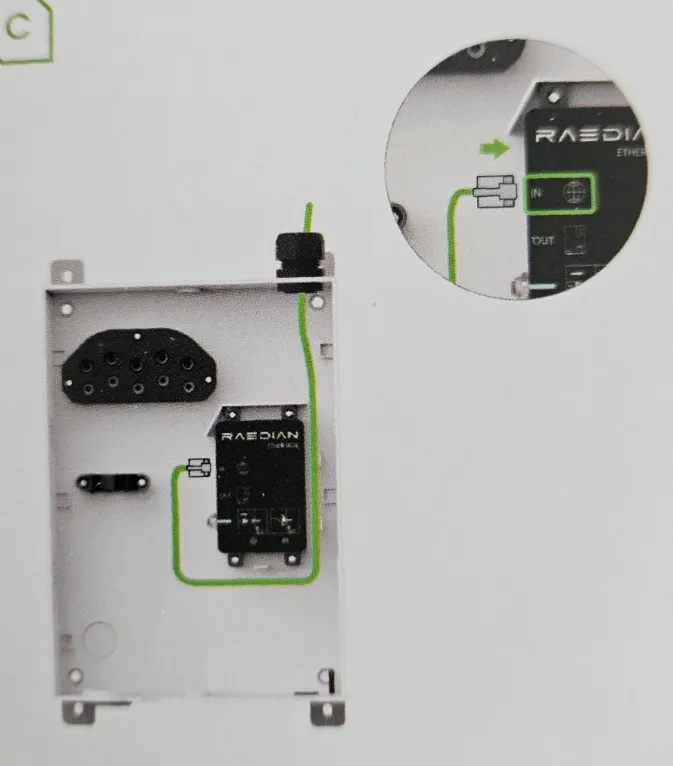

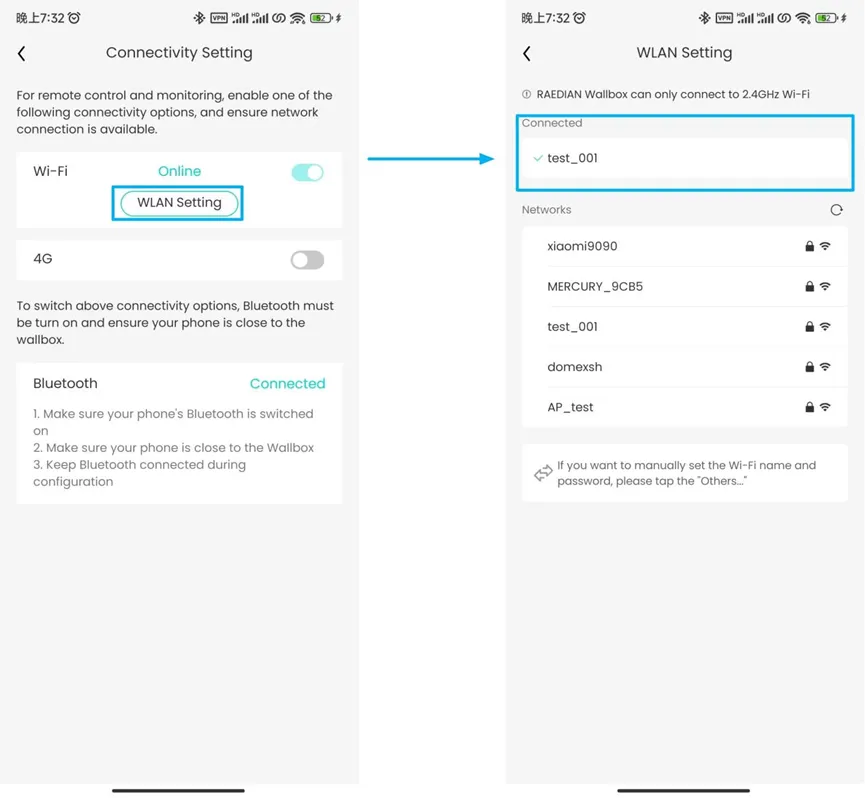

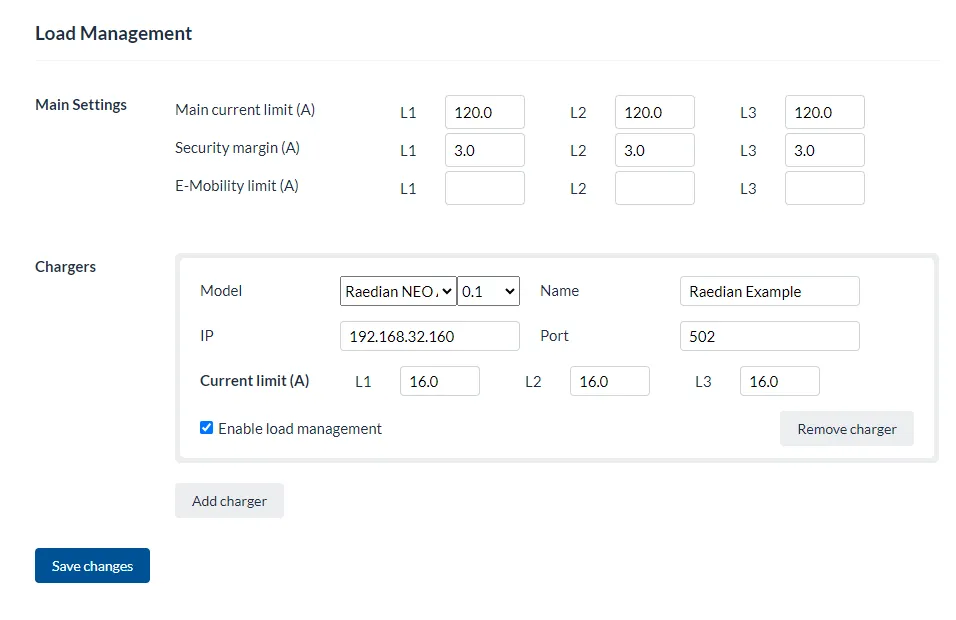

minimal requirements charger v1 3 3 raedian app v2 3 0 1 1) for lan connect the wallbox in the same lan with your load management system 1 1 1) ethernet cable entry daisy chain 1 1 2) installing wallbox 2\) power on the wallbox 3\) download the raedian app 4\) pair the wallbox in the raedian app 1 2) in case you want to connect via wlan instead of lan go to wlan settings at your charger in the raedian app and connect to the required network 5\) in the app ensure the bluetooth is connected, and go to device setting > advanced setting 6\) tap to turn on modbus tcp and complete the server setting server port recommended to set on 502 for modbus (not like in the image which is set at 8000) fill up and confirm 7\) tap on confirm 8\) search and make sure that the ip address appears in your local area network 9\) now add the ip address and port in the clemap web interface (you will find it at \[clemapsipaddress 4000] in your browser) happy charging!
