Step 2: CLEMAP connection to a WIFI network or via Ethernet cable
Connect to the Product's WLAN Network
Connect to the WiFi network created by the CLEMAP product with your smartphone or laptop.
Name | clemapXX, where XX = the last two digits of the serial number |
|---|---|
Password | sensorsetup |
WARNING: If an Ethernet cable is connected to the CLEMAP sensor, the clemapXX's WIFI hotspot is automatically deactivated.
For security reasons, the hotspot is deactivated after 10 minutes without connection. To reactivate it, press the RESET button for more than 1 second (until the status LED starts flashing rapidly).
Log In to the System
Log in with the following credentials.
User | clemap |
|---|---|
Password | The serial number on the housing, e.g. SE12345678 |
Verify Consumption Values and Sensor Placement
Briefly check if the displayed consumption values (P, V and I) for the three phases L1, L2 and L3 are realistic. In case of anomalies, check if each current sensor matches the correct voltage phase, if the current sensors are connected to the correct input (main) cable and if they "clicked" when closed.

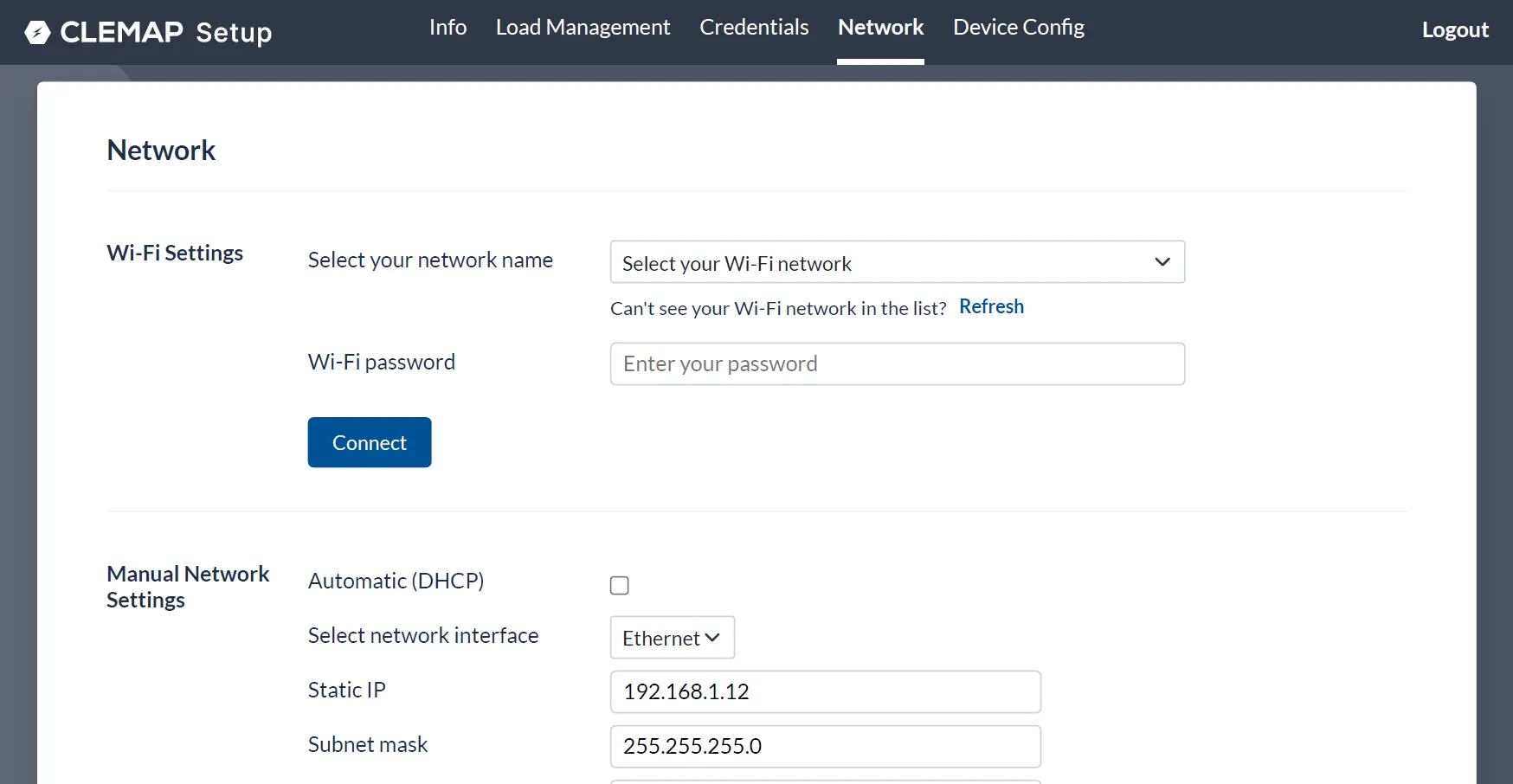

Assign a Fixed IP Address
The CLEMAP product’s IP address is automatically assigned via DHCP. To assign a fixed IP address to the CLEMAP product, select the network interface (Ethernet or Wi-Fi), disable "Automatic (DHCP)", enter the desired "Static IP", "Subnet Mask", and "Gateway IP", then click "Save and Restart".
In the case of a WiFi connection, proceed to the next step. In the case of an Ethernet connection, connect the cable and go directly to Step 3: Activation on floem.clemap.com
Select WLAN Network and Enter Password
Select "Network", select "Refresh" and your Wi-Fi network from the pop-up menu and enter your Wi-Fi password.
CAUTION: the CLEMAP product only supports WIFI on the 2.4 GHz band. Once you have saved the WIFI password, you can log out. Within a few minutes, the sensor will be connected to the WIFI network you have chosen.
